Figure 2.

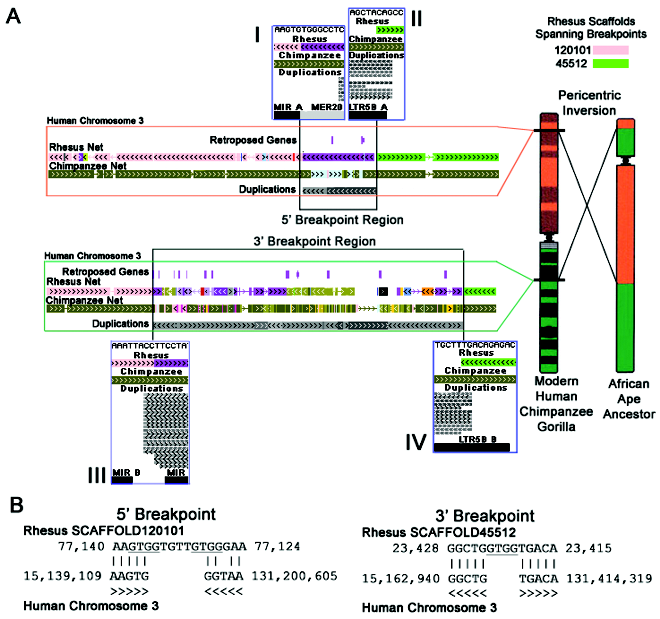

Figure 2. Human chromosome 3 pericentric inversion breakpoints.
a, Inversion breakpoint regions in human chromosome 3 compared to chimpanzee and rhesus macaque. Insets of breakpoint boundaries are designated by Roman numerals. Figure adapted from the UCSC genome browser and ref. 16. b, Rhesus breakpoint sequence aligned to human. The sequences homologous to both breakpoints are underlined.
