Supplementary Figure 4. chr3:36117438-36331153 chr3:15092963-15116786
Supplemental Figure 4. Alignment of segmental duplication at human chromosome 3 inversion breakpoint to chromosome 11.

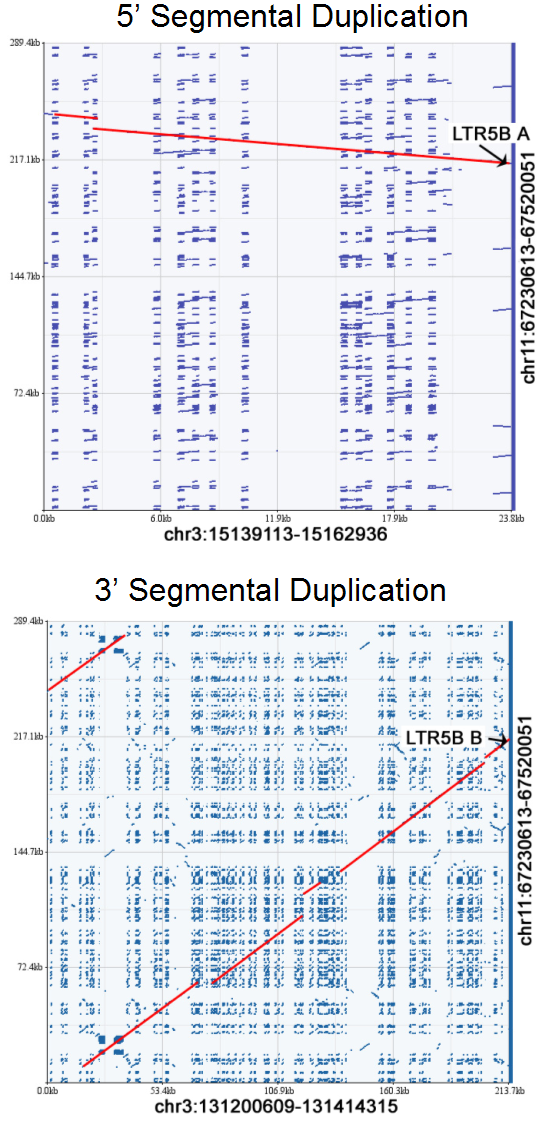

Dot plot of 5' and 3' breakpoint region segmental duplications to the same segment of chromosome 11 that is their probable origin. The LTR5B was split by the inversion event. The major alignments are shown in red for emphasis. ( The above images are linked to the Human Chr 3 annotation data deposited in Genboree. )
